SKU:SI-M-S7-1500-7”HMI

PLC Type: S7-1511-1CK01-0AB0

Technical Specification:

• Discrete Inputs: 16
• Discrete Outputs: 10
• Analog Inputs: 4
• Analog Outputs: 2
• HMI Type: Basic 7”BASIC
• DI/DO/AI/AO External Test
• With banana plug
• 4 Green
• 4 Yellow
• 4 Blue
• 6 Red for +Ve 24V
• 6 Black for -Ve 0 V

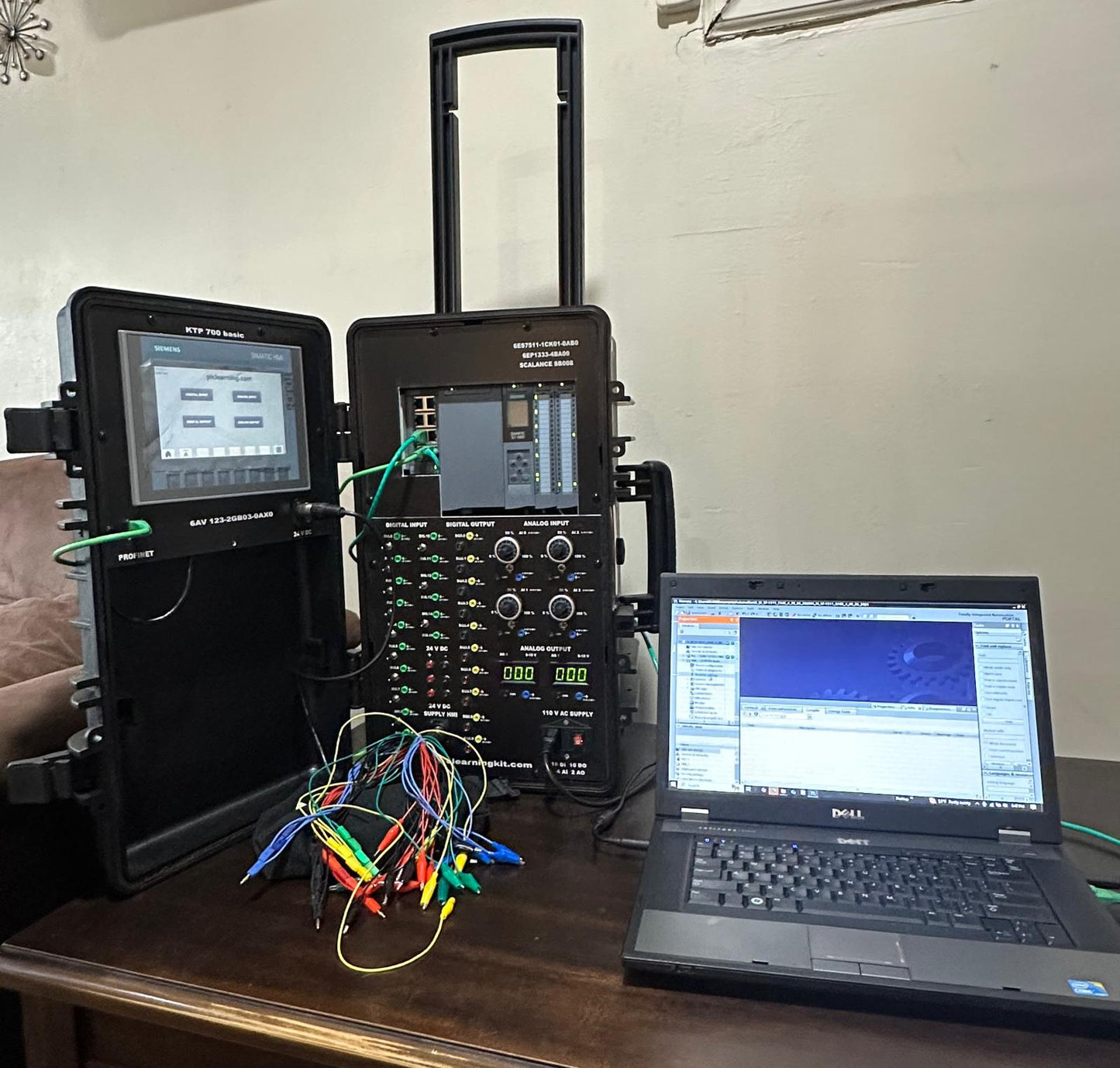

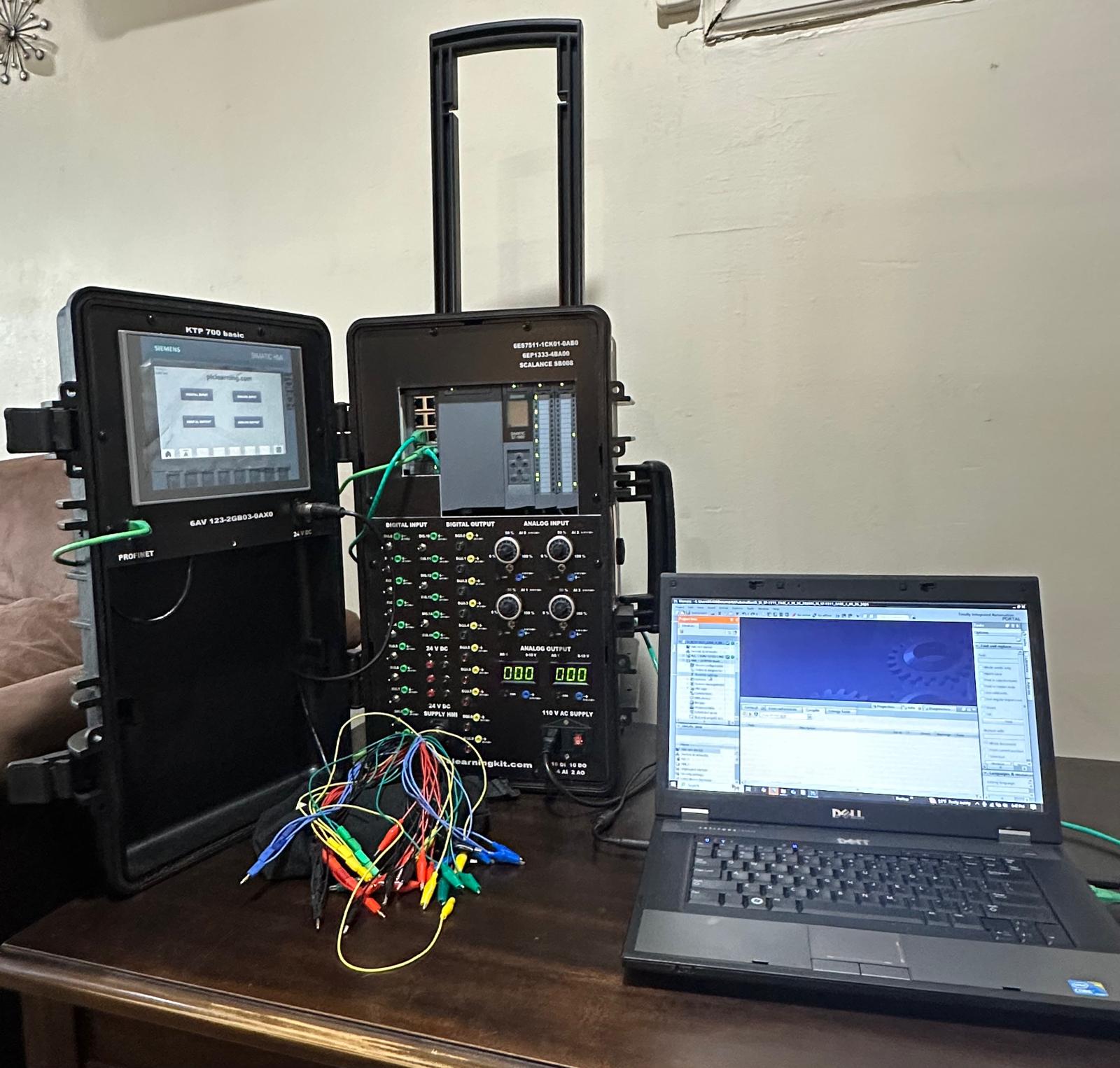

This is the PLC learning kit for Siemens S7-1500 series everything you need to start your PLC programming career including a Basic 7” HMI. These learning kits is designed for maintenance technicians, Technical school, vocational school and individuals who wish to learn more than the basics to advance plc learning.

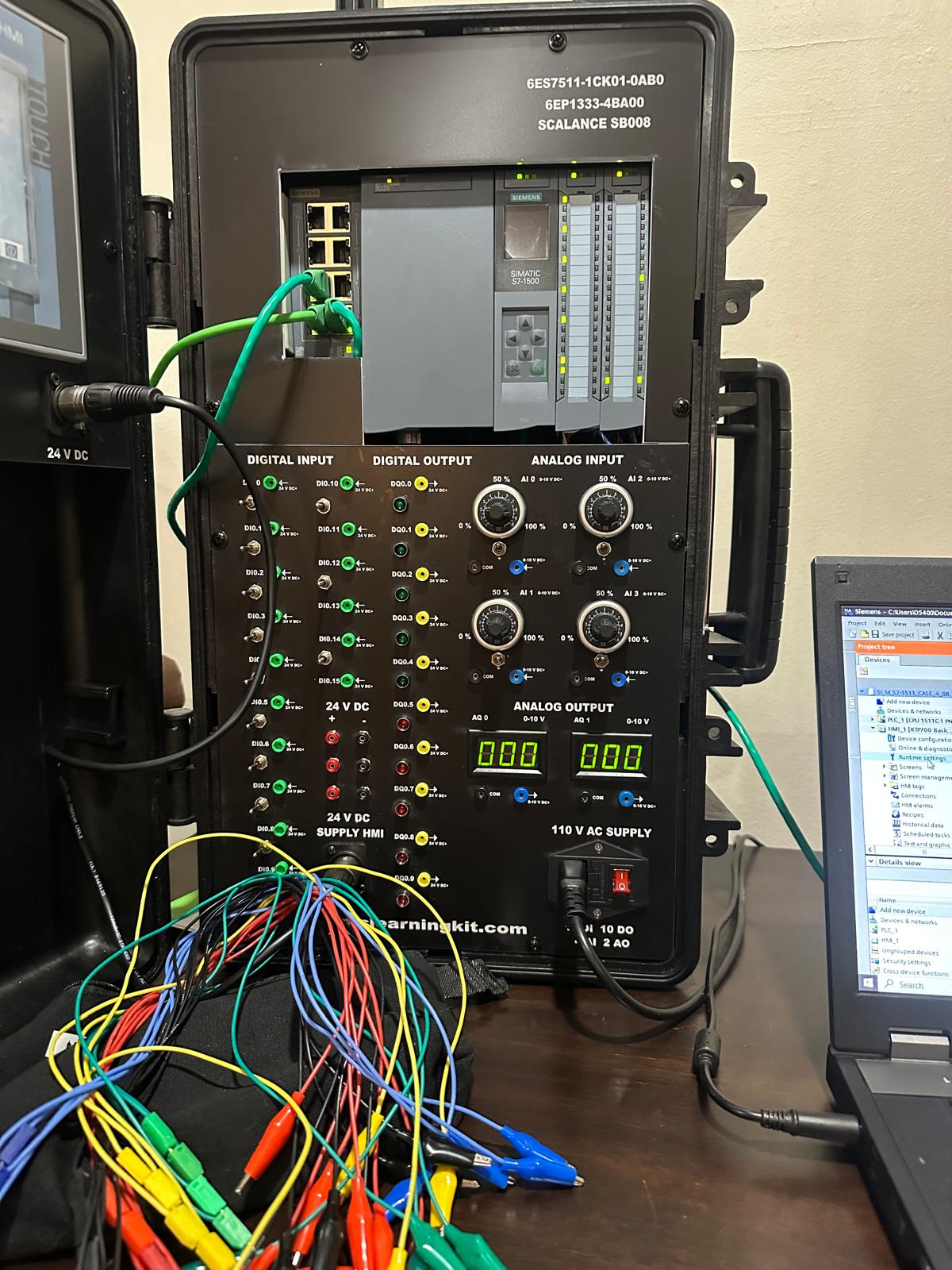

The S7-1511 PLC includes 16 discrete 24VDC inputs, 10 discrete 24VDC outputs, 4 0-10VDC analog inputs and 2  0-10VDC analog outputs. This case can be simulated or attached external 24 V DC DI,DO,AI and AO with a banana plug. Can be developed small project and all IO to that project.

This trainer uses the TIA Portal software not included. The trainer requires 120VAC and plugs into your typical wall outlet.

Learning kit includes:

• Selector switch for discrete input simulation: Learning kit has comes with 10 on-off light duty toggle switch and 3 on-off-on light duty toggle switch
• Lamp for discrete output simulation - Learning kit has comes with six green led lamp and four red led lamp
• Analog Potentiometer  for analog input simulation:Learning kit has comes with four 10K ohms heavy duty potentiometer for 0-10 v dc analog input for plc
• Analog digital panel meter for analog output simulation: two digital panel meters for 0-10 v dc output reading.
• 24VDC Power Supply - Your trainer comes with a 24VDC 120 watt switching power supply. The trainer is designed for all switches, lights, relay/contactor, and even the heater to be powered by 24VDC making it much safer than 120VAC trainers.

• Ethernet switch: Learning kit comes with 8 port ethernet switch for network.

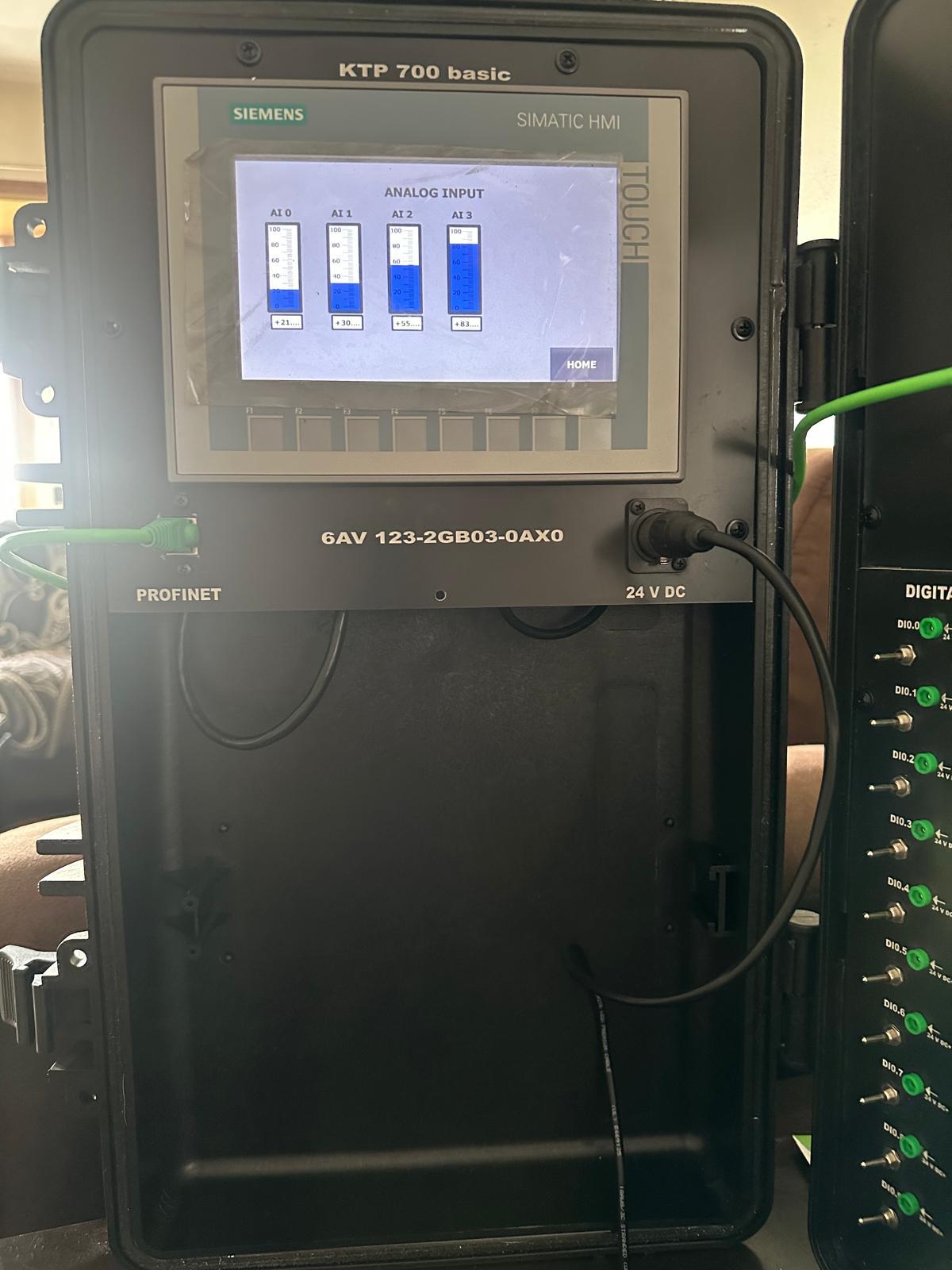

• Basic HMI panel: Learning kit has a 7” HMI screen
