Automation Direct Click Plus series Trainer with Analog and HMI 1 (SKU: AD-S-CLICK PLUS-4" HMI)
Automation Direct Click Plus series Trainer with Analog and HMI 1 (SKU: AD-S-CLICK PLUS-4" HMI)
Couldn't load pickup availability
SKU: AD-S-CLICK PLUS-4" HMI
PLC Type: CLICK PLUS
Technical Specification:
- C2-03CPU
- C0-16ND3DI
- C0-16TD2
- Discrete Inputs: 14
- Discrete Outputs: 10
- Analog Inputs: 4
- Analog Outputs: 2
- HMI Type: CM5-T4W

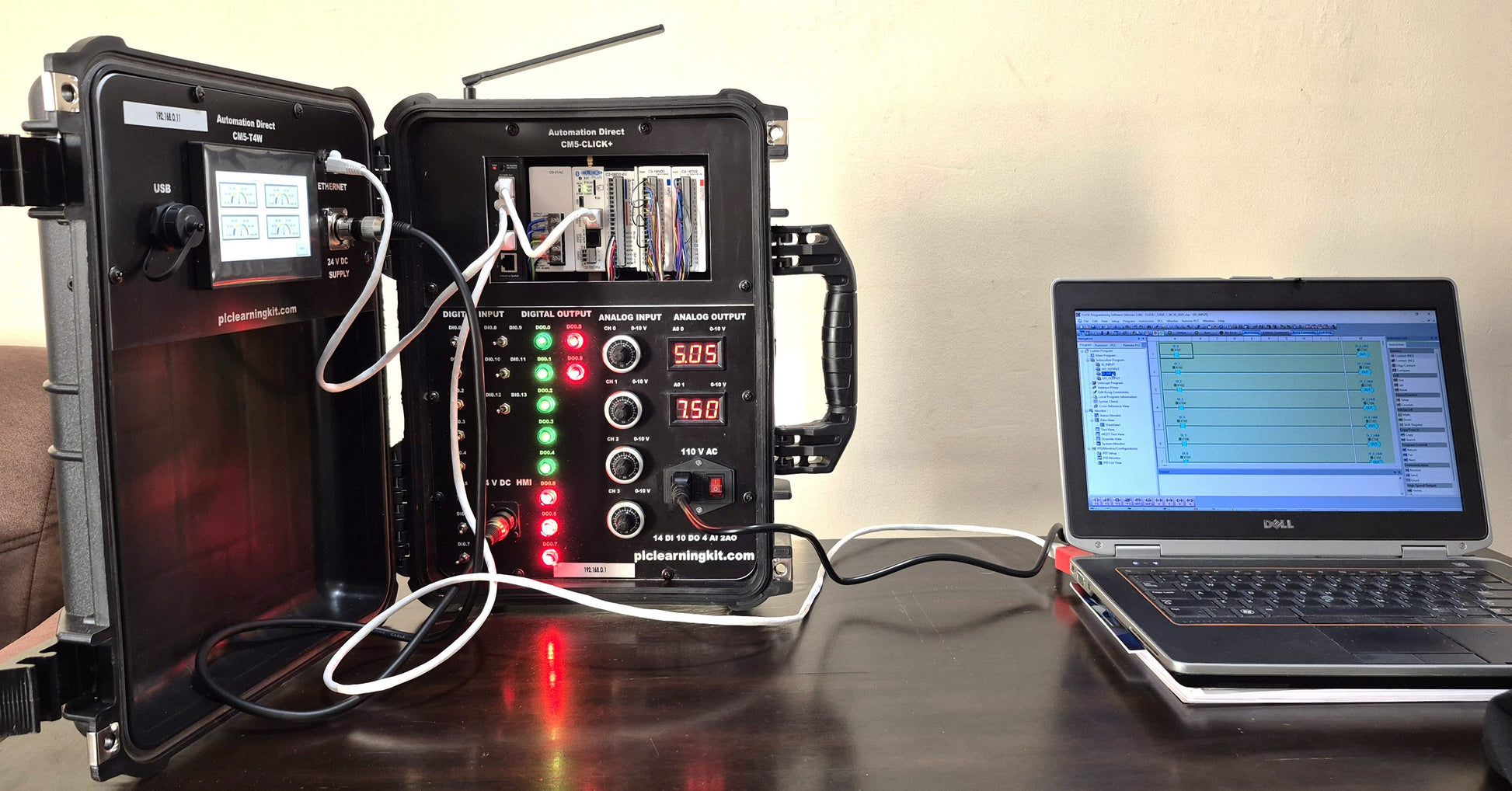

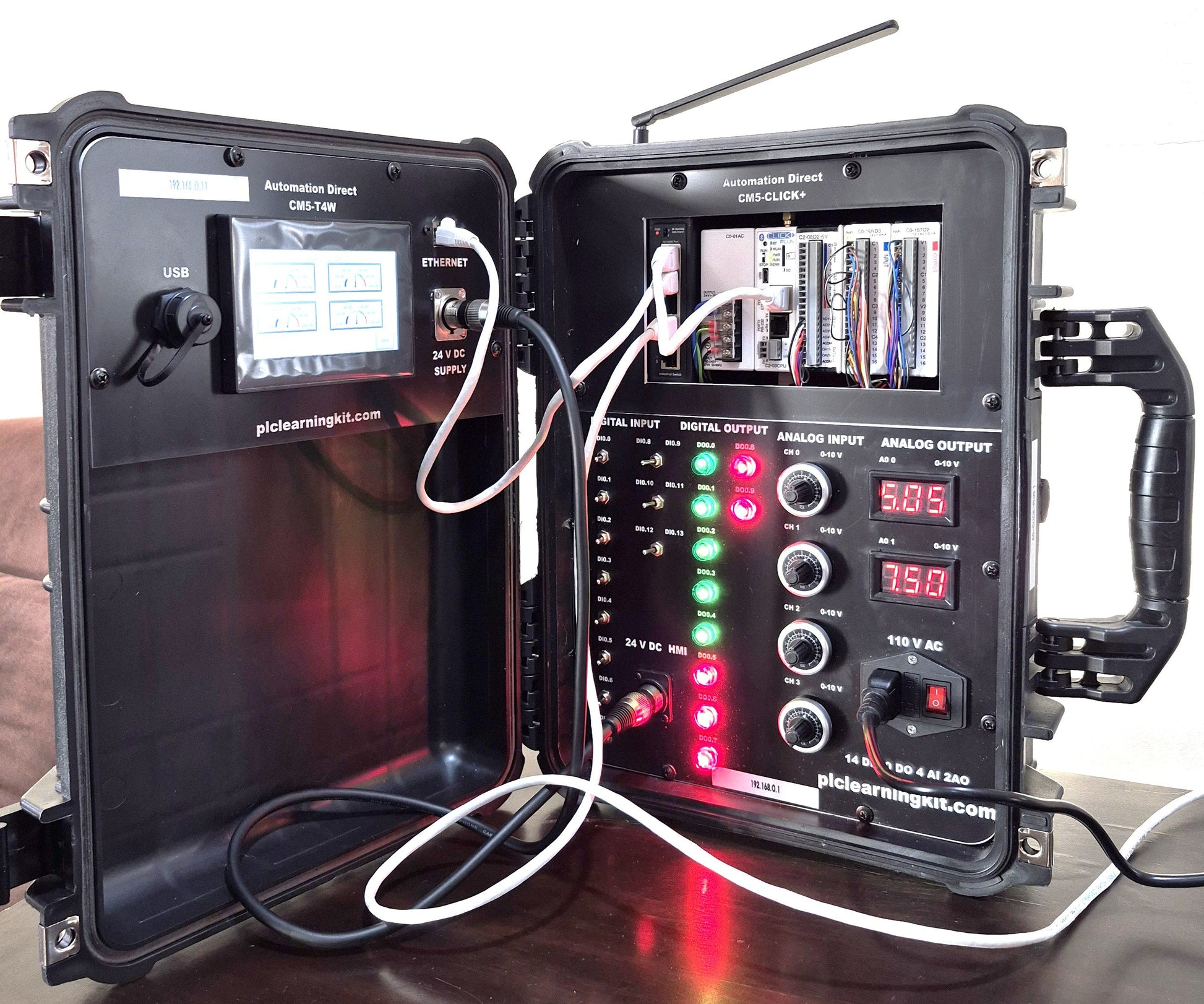

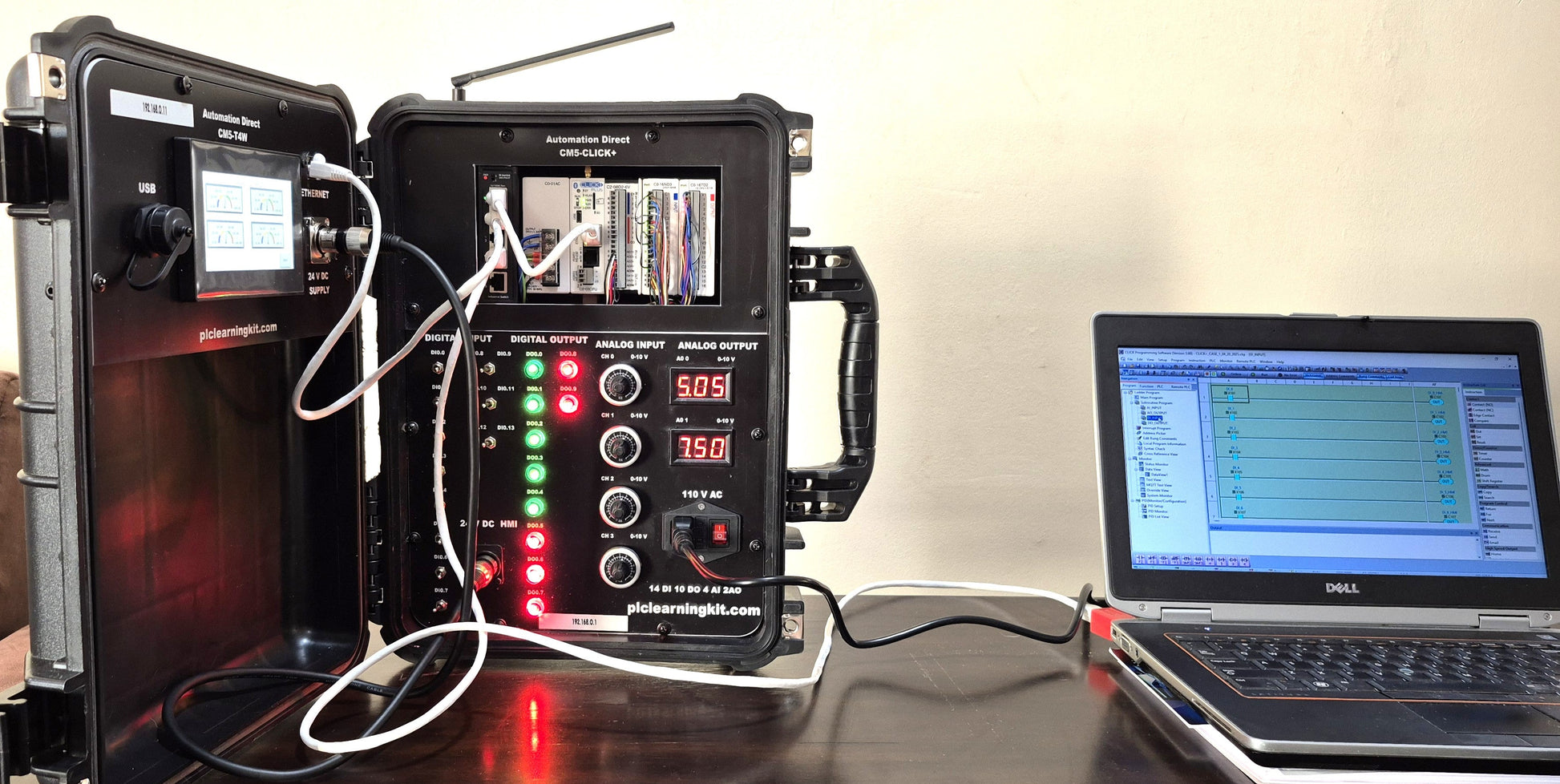

This is the PLC learning kit for Automation Direct CLICK PLUS series everything you need to start your PLC programming career including 4” HMI. These learning kits are Designed for maintenance technicians, Technical school, vocational school and individuals who wish to learn more than the basics to advance plc learning.

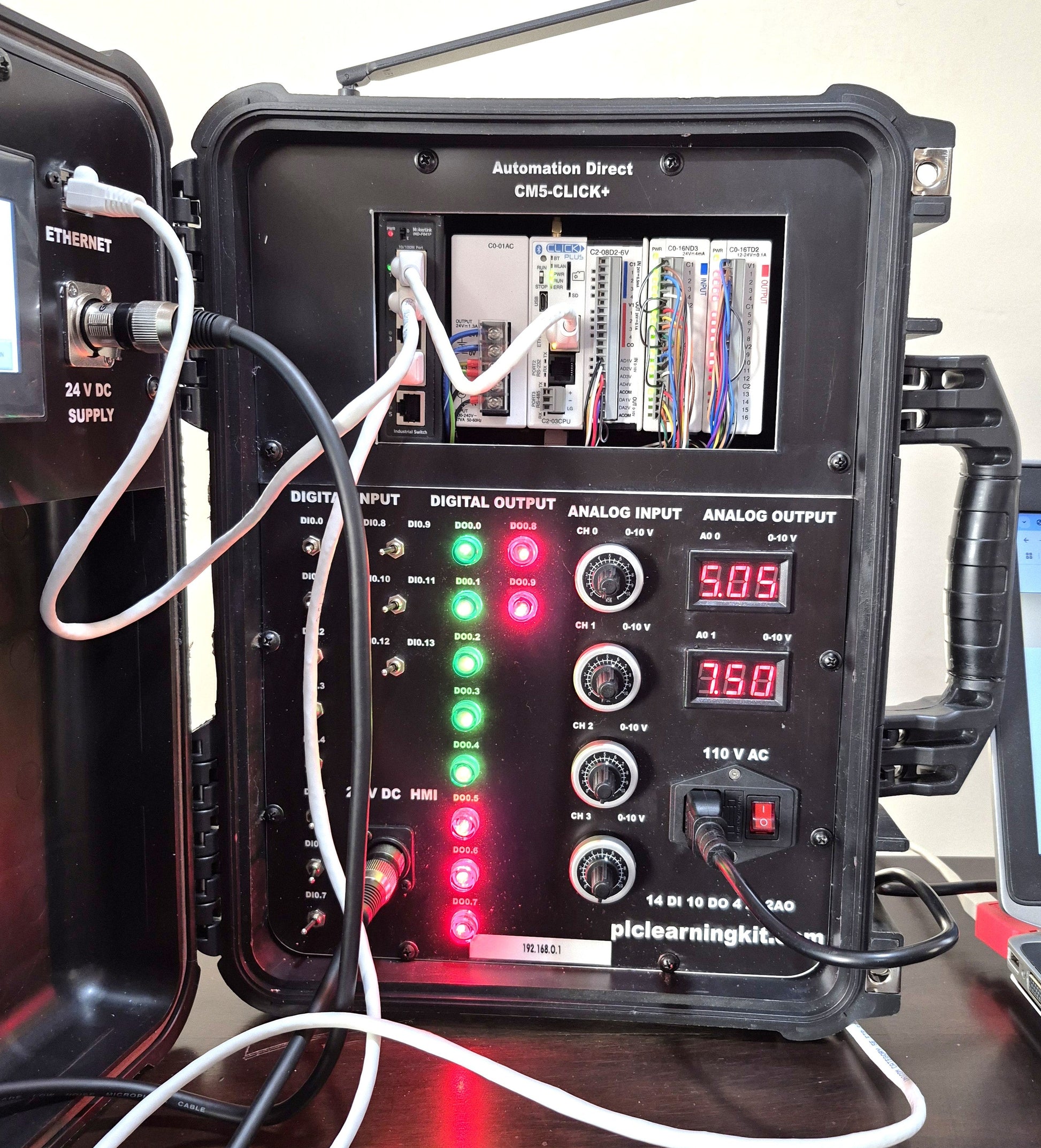

The Automation Direct CLICK PLUS PLC includes 14 discrete 24VDC inputs, 10 discrete 24VDC outputs, 4 0-10VDC analog inputs and 2 0-10VDC analog outputs. This trainer uses CLICK PLUS Software, free download from automationdirect.com. The trainer requires 120VAC and plugs into your typical wall outlet.
Learning kit includes:
- Selector switch for discrete input simulation: Learning kit has comes with 10 on-off light duty toggle switch and 3 on-off-on light duty toggle switch
- Lamp for discrete output simulation - Learning kit has come with six green led lamp and four red led lamp
- Analog Potentiometer for analog input simulation:Learning kit has comes with four 10K ohms heavy duty potentiometer for 0-10 v dc analog input for plc
- Analog digital panel meter for analog output simulation: two digital panel meters for 0-10 v dc output reading.
- 24VDC Power Supply - Your trainer comes with a 24VDC 50 watt switching power supply. The trainer is designed for all switches, lights, relay/contactor, and even the heater to be powered by 24VDC making it much safer than 120VAC trainers.
- Ethernet switch: Learning kit comes with 5 port ethernet switch for network.

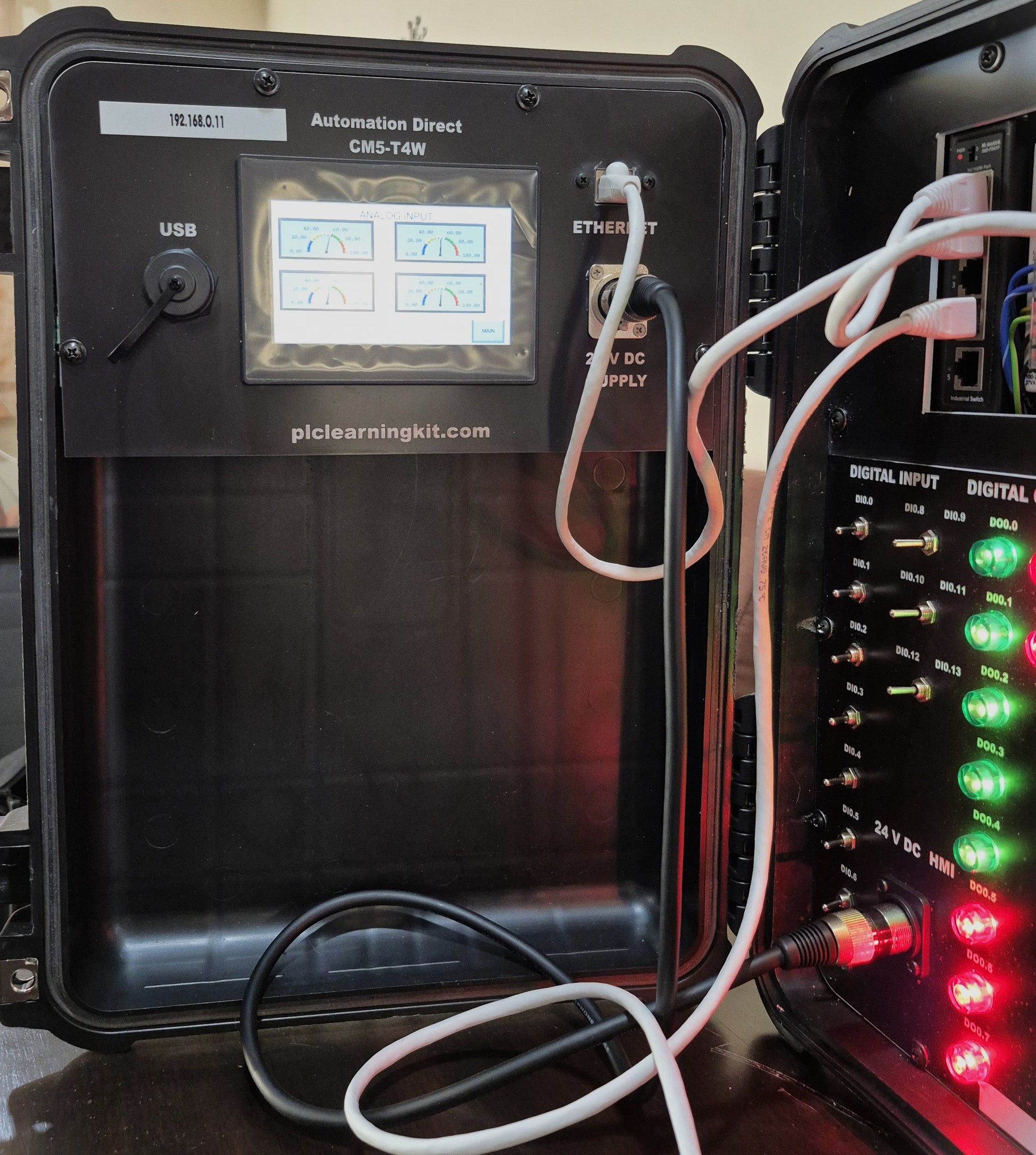

- 4” CM5-T4W HMI panel: Learning kit has a 4” HMI screen.
