Technical Specification:
- PLC Type: S7-1215
- Discrete Inputs: 14
- Discrete Outputs: 10
- Analog Inputs: 2
- Analog Outputs: 2
- HMI Type: Basic 4”

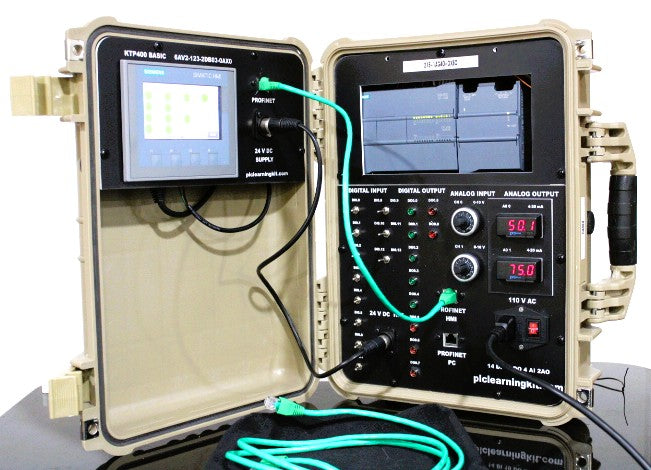

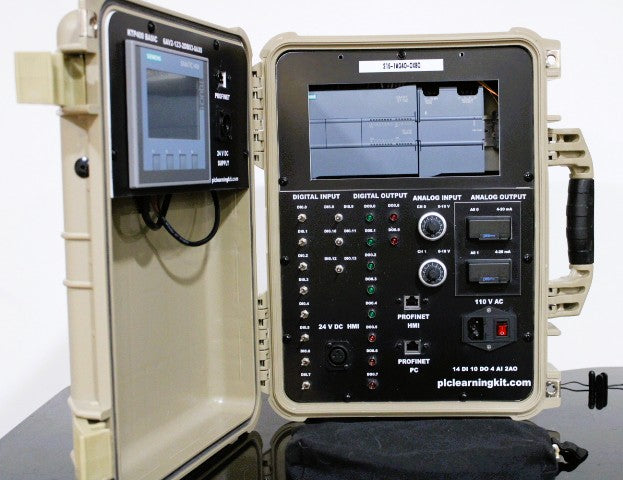

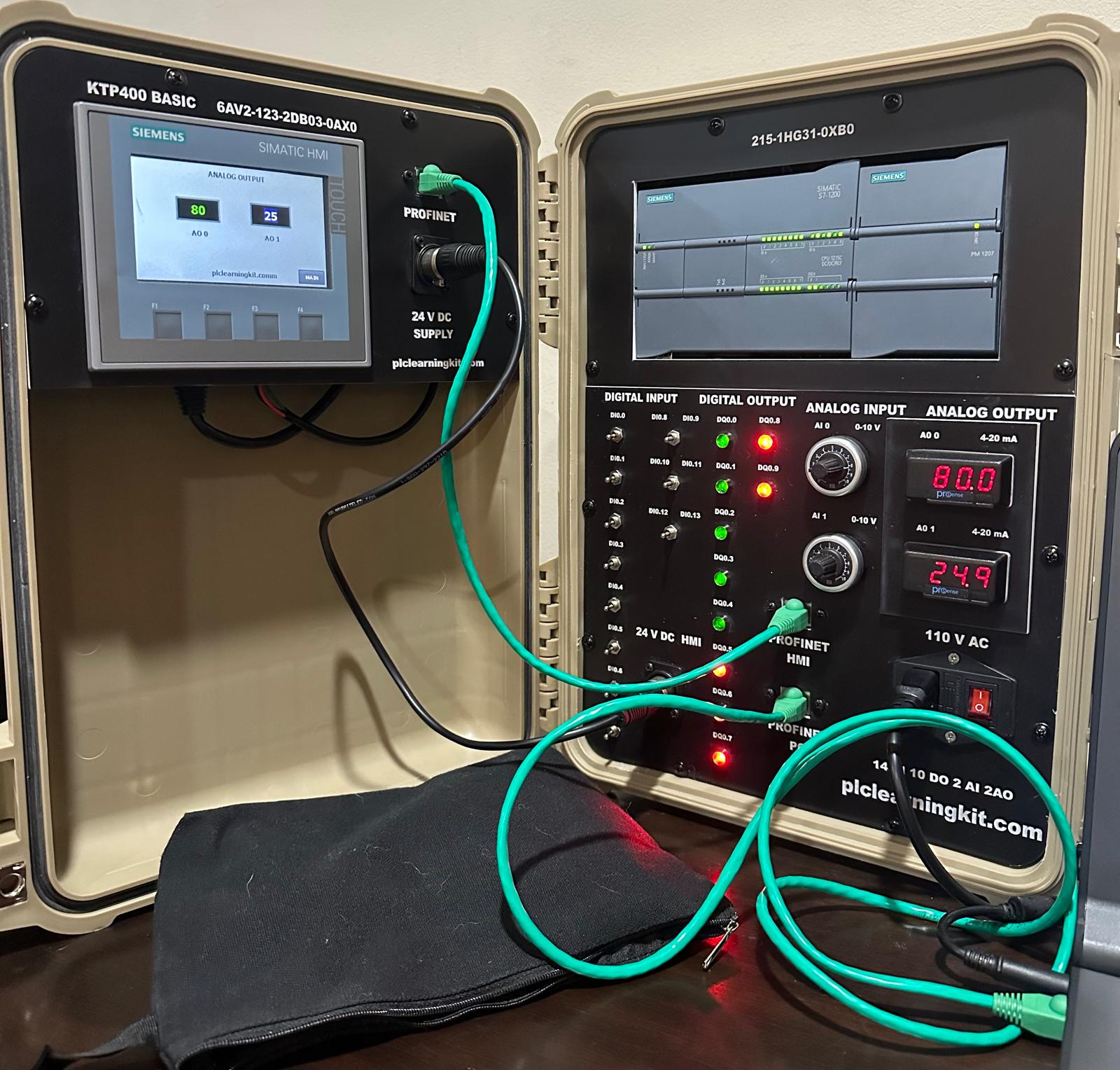

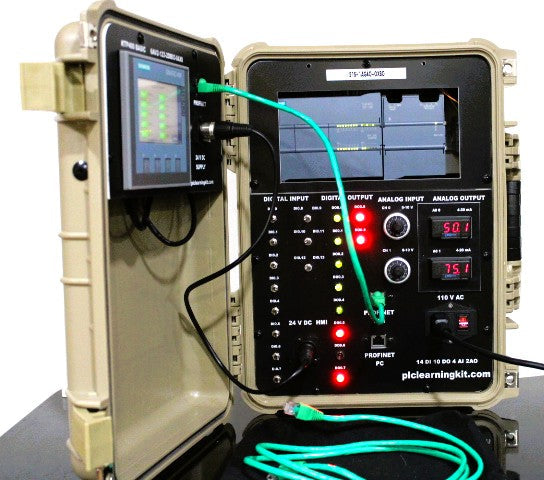

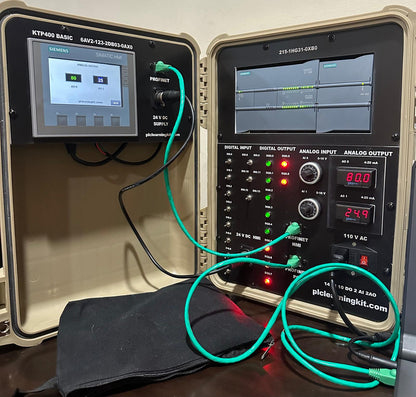

This is the PLC learning kit for Siemens S7-1214 series everything you need to start your PLC programming career including a Basic 4” HMI. These learning kits are Designed for maintenance technicians, technical school, vocational school and individuals who wish to learn more than the basics to advance plc learning.

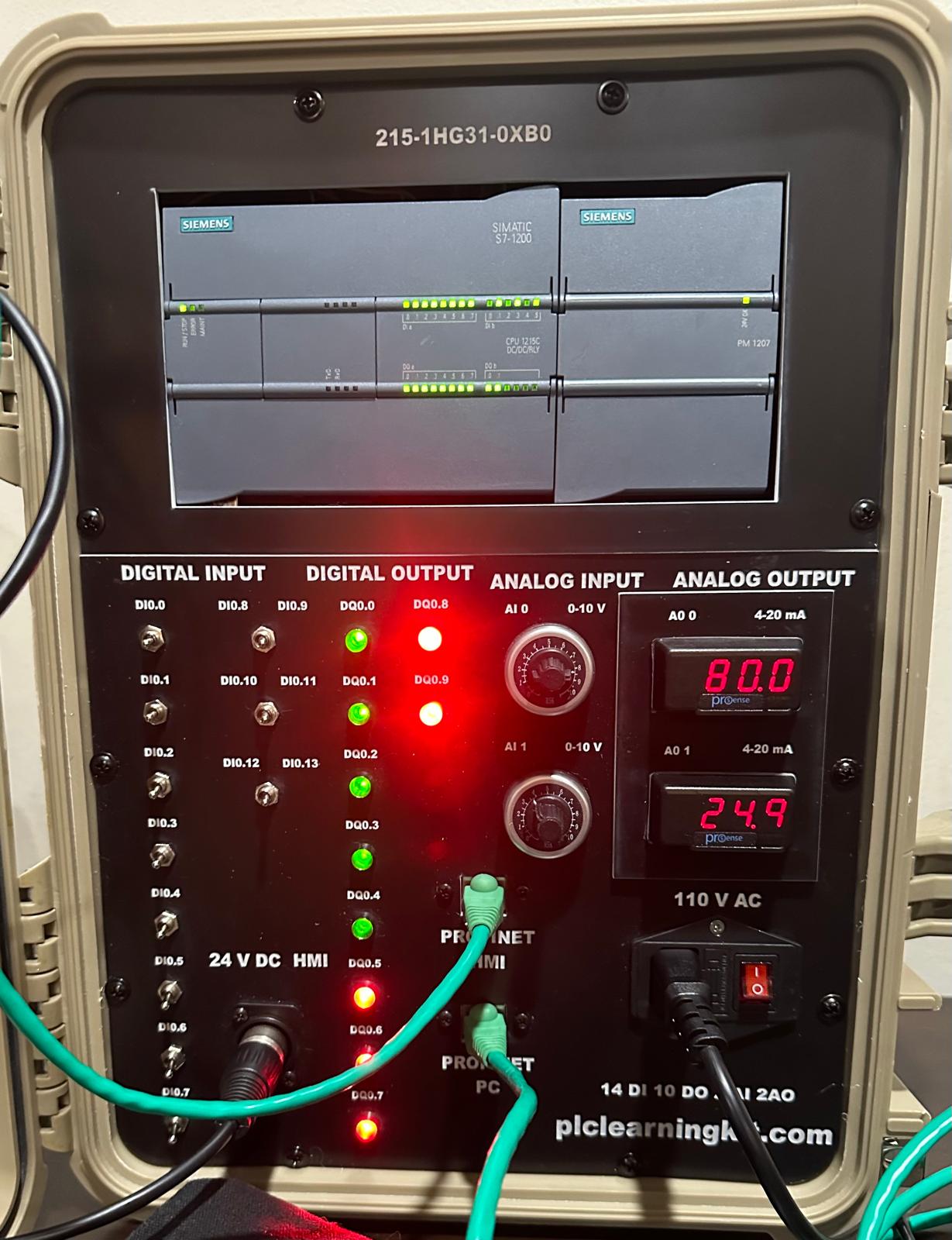

The S7-1215 PLC includes 14 discrete 24VDC inputs, 10 discrete 24VDC outputs, 2 0-10VDC analog inputs and 2 0-10VDC analog outputs. This trainer uses the TIA Portal software not included. The trainer requires 120VAC and plugs into your typical wall outlet.
Learning kit includes:
-
Selector switch for discrete input simulation: Learning kit has comes with 10 on-off light duty toggle switch and 3 on-off-on light duty toggle switch
-
Lamp for discrete output simulation - Learning kit has come with six green led lamp and four red led lamp
-
Analog Potentiometer for analog input simulation:Learning kit has comes with two 10K ohms heavy duty potentiometer for 0-10 v dc analog input for plc
-
Analog digital panel meter for analog output simulation: two digital panel meters for 0-10 v dc output reading.
-
24VDC Power Supply - Your trainer comes with a 24VDC 50 watt switching power supply. The trainer is designed for all switches, lights, relay/contactor, and even the heater to be powered by 24VDC making it much safer than 120VAC trainers.
-
Ethernet switch: Learning kit comes with 5 port ethernet switch for network.
-

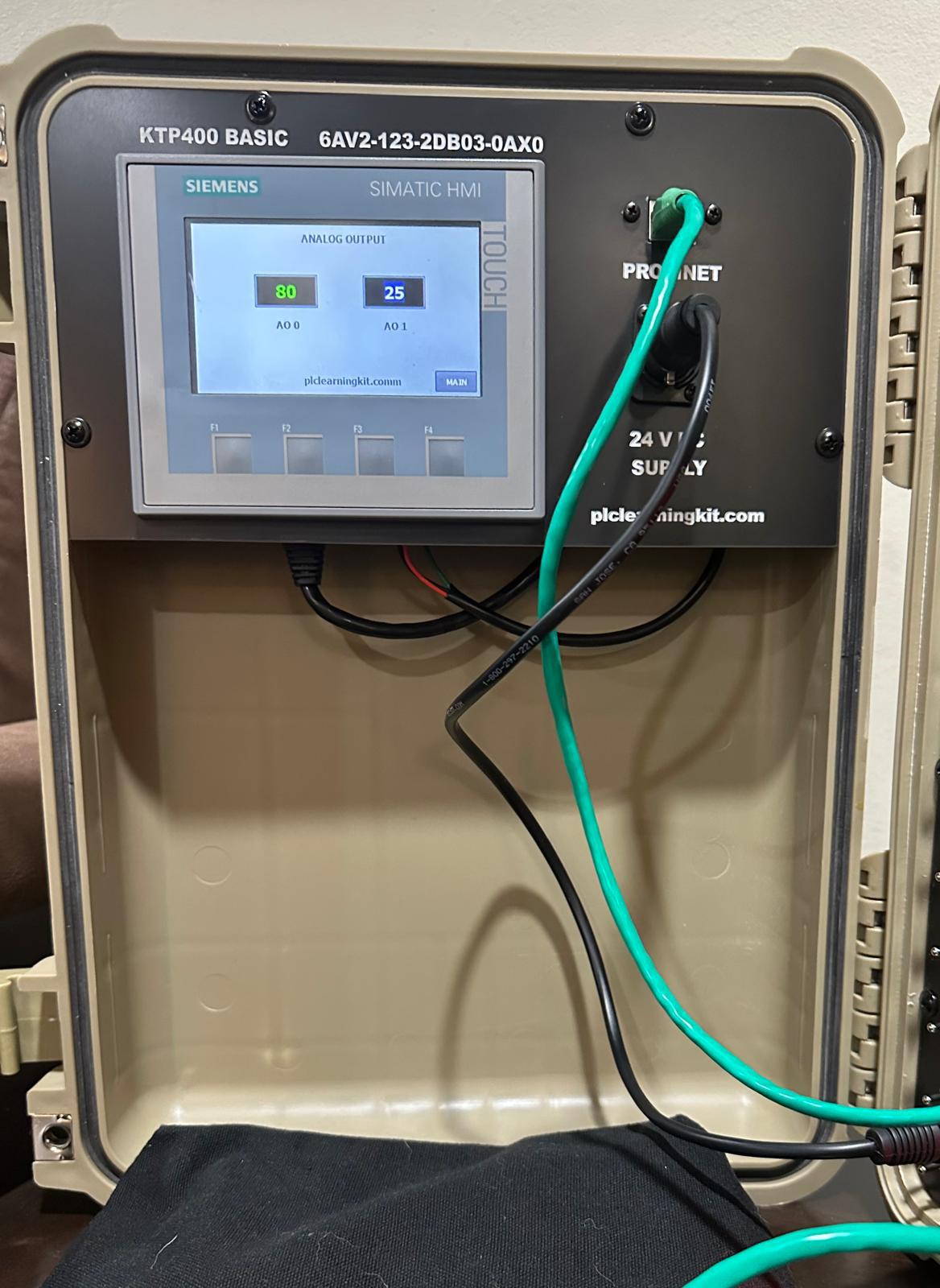

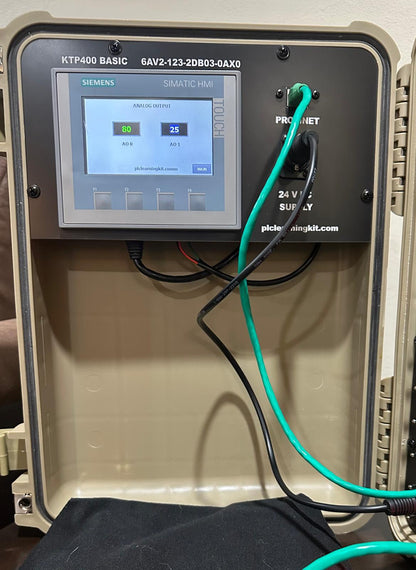

4” Basic HMI panel:Learning kit has a 4” HMI screen.
